Non-Destructive Testing using Liquid Penetrant Inspection
Unmasking Defects: The Secrets Beneath the Surface
In non-destructive testing (NDT), liquid penetrant inspection (LPI) is widely used for detecting surface-breaking defects in various materials. It involves using a liquid penetrant, which seeps into surface cracks and discontinuities, making them visible under proper lighting conditions. This blog delves into the principles, working, applications, and advantages of liquid penetrant inspection.
Principle and Working of Liquid Penetrant Inspection:

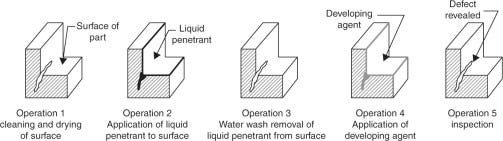

Liquid penetrant inspection works on the principle of capillary action. The process consists of four main steps: surface preparation, application of the penetrant, removal of excess penetrant, and development of the indication.
1. Surface Preparation and Cleaning:
Before the inspection, the surface must be thoroughly cleaned and free from contaminants, such as dirt, grease, or paint. Proper surface preparation ensures optimal liquid penetrant penetration and accurate defect detection.
2. Penetrant Application:

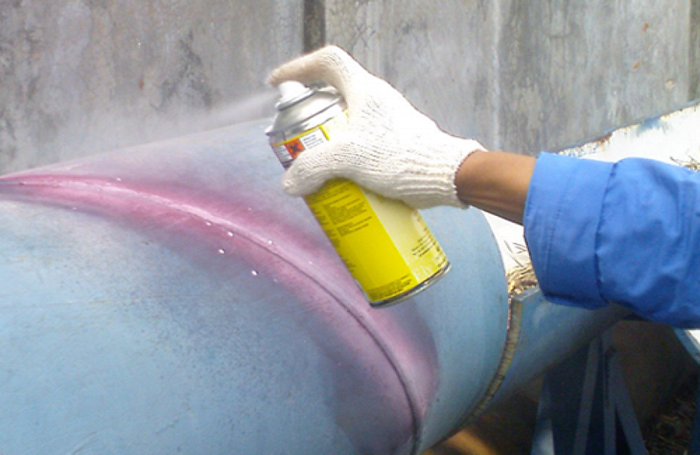

The liquid penetrant is applied to the surface by spraying, brushing, or immersing the part in a penetrant bath. The penetrant is chosen based on the type of defects to be detected and the material being inspected. There are different types of penetrants available, including fluorescent and visible dyes.
3. Removal of Excess Penetrant:
After a sufficient dwell time, the excess penetrant is carefully removed from the surface, leaving the penetrant only in the cracks and discontinuities. The removal method depends on the type of penetrant system used.
- Water Washable System: This system involves rinsing the part with water to remove the excess penetrant. It is commonly used when water-based penetrants are employed.
- Post-Emulsification System: An emulsifier is applied after the penetrant dwell time, which helps lift the penetrant from the discontinuities. The excess penetrant is then removed by rinsing with water.
- Solvent Removable System: A solvent is used to remove the excess penetrant in this system. The solvent dissolves the penetrant, and the surface is cleaned with a dry cloth or air jet.
4. Development of the Indication:
The final step involves the application of a developer, which draws out the trapped penetrant from the cracks, making them visible. The developer can be in the form of a powder or a liquid suspension. The indication is then examined under appropriate lighting conditions to detect and evaluate any defects.
Advantages and Limitations of Liquid Penetrant Inspection:
Advantages:
- Cost-effective compared to other NDT methods.
- Can detect surface-breaking defects, including cracks, porosity, and laps.
- Works on various materials, such as metals, plastics, ceramics, and composites.
- Simple and easy to perform, requiring minimal training.
- Provides immediate visual indication of defects.
Limitations:
- Limited to surface defects and may not detect subsurface or internal defects.
- Requires proper surface preparation for accurate results.
- Sensitivity depends on the size and depth of the defect.
- It cannot be used on porous materials that absorb the penetrant.
Applications of Liquid Penetrant Inspection:
Liquid penetrant inspection finds applications in various industries, including aerospace, automotive, manufacturing, oil and gas, and construction. It is commonly used for inspecting welds, castings, forgings, and machined components.
LPI is crucial for ensuring the quality and integrity of critical components, enhancing safety, and preventing catastrophic failures.
A liquid penetrant inspection is a valuable tool in non-destructive testing, allowing for the detection of surface-breaking defects that may compromise the integrity of materials and components. By understanding the principles, working, advantages, and limitations of liquid penetrant inspection, industries can ensure the reliability and safety of their products.
Remember, a closer look beneath the surface can make all the difference when it comes to quality assurance.
